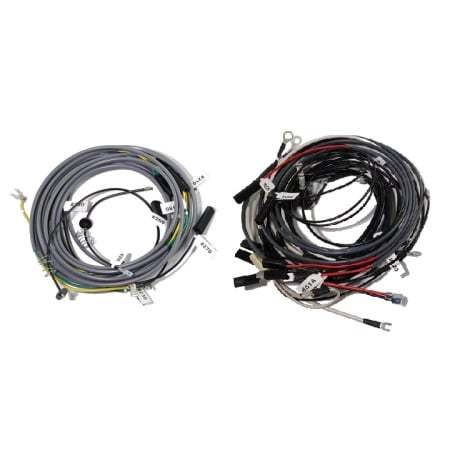

John Deere 630 LP Complete Wire Harness With Flat Fender Lighting

$229.75

#B3028-071, Complete Wiring Harness for John Deere 630 LP Gas Tractor (Serial #6,300,000 & Up)

Original Design with 4-Light Flat Fender Lighting

  • Made to Look Exactly Like the Original with Our Premium PVC Wire
  • Has the Correct Gauge, Color, Wire, & Fuse Holders (If Needed)
  • All Terminals are Soldered & Rubber Sealed
  • Each Wire Comes Numbered with an Installation Guide

Doesn’t Include Battery Cables & Spark Plug Wire Sets;
However, We Can Supply These As Separate Products.

Components:
Engine Harness (#B3028-126)
Lighting/Dash Harness (#B3028-088)
Can Be Purchased Separately

Description

#B3028-071, Complete Wire Harness for John Deere 630 LP Tractors (Serial #6,300,000 & Up)

Original Design with 4-Light Flat Fender Lighting



Replaces the Following John Deere Parts

#AR21120R Wiring Replacement Set Complete Harness

#AA4881R Lead Wire From Coil To Distributor
#AA4882R Secondary Cable From Coil To Distributor
#AA5673R Lead Wire Electric Outlet Socket To Battery End
#AF3814R Wiring Harness Rear Lamp
#AR20708R Wiring Harness Cranking Motor To Switch & Ammeter
#AR20710R Wiring Harness Generator & Ignition
#AR20713R Wiring Harness Combination & Starter Switches & Ignition Resistor
#AR20714R Wiring Harness Ammeter To Combination Switch
#AR20715R Wiring Harness Switch To Rear Lamp
#AR20723R Wiring Harness Side Lamps (Four Lamps)
#AR20724R Wiring Harness Fender Lamps

Additional information

Shipping Weight 2.2 lbs
Shipping Dimensions 9 × 9 × 3.5 in

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
